RCT permanent magnet drum

RCT permanent magnet drum can be installed at the head of the belt conveyor instead of the driving wheel. It can be designed and produced according to the GB988-91 belt conveyor standard and is compatible with DT-75 and AD-80 types. It is widely used in industries such as steel slag sorting, cement, casting, chemical, refractory materials, and waste disposal for iron selection.

400-600-0877

Manual response

Technical response

customized solution

Product advantages

Weifang Yunhai Machinery Equipment Co., Ltd. was founded in 2009. Its main products include industrial automation batching systems, electromagnetic permanent magnet separators, permanent magnet magnetic separators, electromagnetic vibration feeders, belt screw conveyors, electromagnetic drums, crushers, packaging machines, dust collectors, and other series of products. We have well-equipped laboratories and laboratories, hire industry experts to lead experiments and laboratory work, provide technical test data and research and development basis, and provide successful and effective iron removal solutions for various industries.

+
Company incorporation
+
reputable manufacturer
+
invention patent
+
product coverage

RCT permanent magnet drum

Product Introduction

The RCT series permanent magnet drum is a magnetic separation equipment that continuously and automatically removes iron from dry powder materials. It adopts a unique magnetic circuit design inside and uses high-performance permanent magnet neodymium iron boron material as the magnetic source. The magnetic field is strong, the suction force is large, and the iron removal rate is high. It has the characteristics of maintenance free, energy-saving, safe and reliable use, and can adjust and control the feeding amount, which is suitable for the requirements of different particles. The product is widely used in industries such as iron ore beneficiation, abrasives and grinding tools, refractory materials, non-metallic beneficiation, carbon black, grain, feed, chemical raw materials, etc.

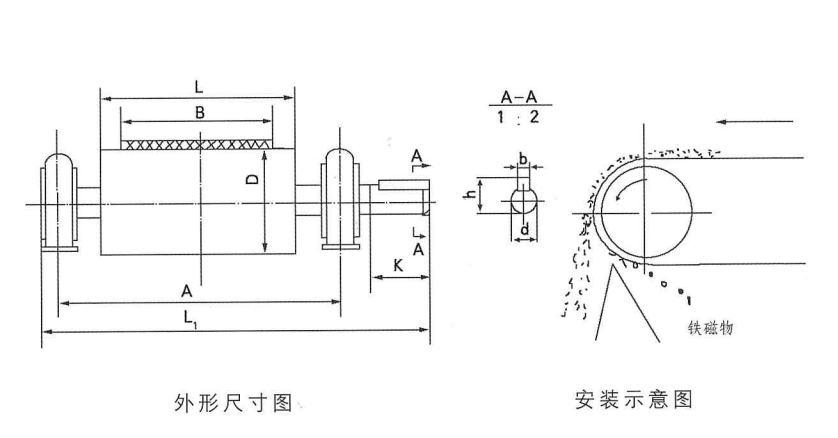

b149b545855df08a5b6539942a3570b

Technical Specifications

Parameters/Project/Model	Magnetic field strength of cylinder meter	Belt speed ≤ m/s	Material thickness ≤ mm	Weight kg	Overall dimensions mm
Parameters/Project/Model	Magnetic field strength of cylinder meter	Belt speed ≤ m/s	Material thickness ≤ mm	Weight kg	A	B	φD	L	L1	K	φd	h	b
RCT-32/40	1500	4.5	40	150	728	400	320	500	962	100	45	48.5	14
RCT-32/50	1500		60	198	850	500	320	600	1097	115	50	53.5	14
RCT-40/50	1550		80	250	850	500	400	600	1097	115	55	60	16
RCT-50/50	1600		100	370	850	500	500	600	1097	115	55	60	16
RCT-32/65	1500		70	205	910	650	320	750	1280	135	65	69	18
RCT-40/65	1550		100	405	1000	650	400	750	1280	135	65	69	18
RCT-50/65	1600		130	580	1000	650	500	750	1280	135	70	76	20
RCT-63/65	1650		130	800	1000	650	630	750	1310	135	70	76	20
RCT-50/80	1550		100	780	1300	800	500	950	1580	135	70	76	20
RCT-65/80	1650		130	1100	1300	800	650	950	1661	175	70	76	20
RCT-80/80	1800		150	1550	1300	800	800	950	1661	175	90	97	24
RCT-63/100	1700		130	1800	1500	1000	630	1150	1861	175	90	97	24
RCT-80/100	1700		170	2600	1500	1000	800	1150	1954	215	90	97	24
RCT-100/100	1800		200	3050	1500	1000	1000	1150	2005	255	130	138	36
RCT-63/120	1800		130	2400	1750	1200	630	1400	2195	215	110	119	32
RCT-80/120	1800		170	3500	1750	1200	800	1400	2173	215	110	119	32
RCT-100/120	1800		200	4400	1750	1200	1000	1400	2270	255	130	138	36
RCT-100/140	1800		230	5900	2000	1400	1000	1600	2445	275	150	157	40
RCT-125/160	1800		260	7800	2150	1600	1250	1800	2600	255	150	159	40
