CTB (N, S) series permanent magnet wet magnetic separator

CTB/CTS/CTN permanent magnet drum magnetic separator is suitable for mining, coal preparation plants and other units, used for weak magnetic field wet selection of fine particles of strong magnetic minerals, or removal of mixed strong magnetic minerals in non-magnetic minerals.

400-600-0877

Manual response

Technical response

customized solution

Product advantages

Weifang Yunhai Machinery Equipment Co., Ltd. was founded in 2009. Its main products include industrial automation batching systems, electromagnetic permanent magnet separators, permanent magnet magnetic separators, electromagnetic vibration feeders, belt screw conveyors, electromagnetic drums, crushers, packaging machines, dust collectors, and other series of products. We have well-equipped laboratories and laboratories, hire industry experts to lead experiments and laboratory work, provide technical test data and research and development basis, and provide successful and effective iron removal solutions for various industries.

+
Company incorporation
+
reputable manufacturer
+
invention patent
+
product coverage

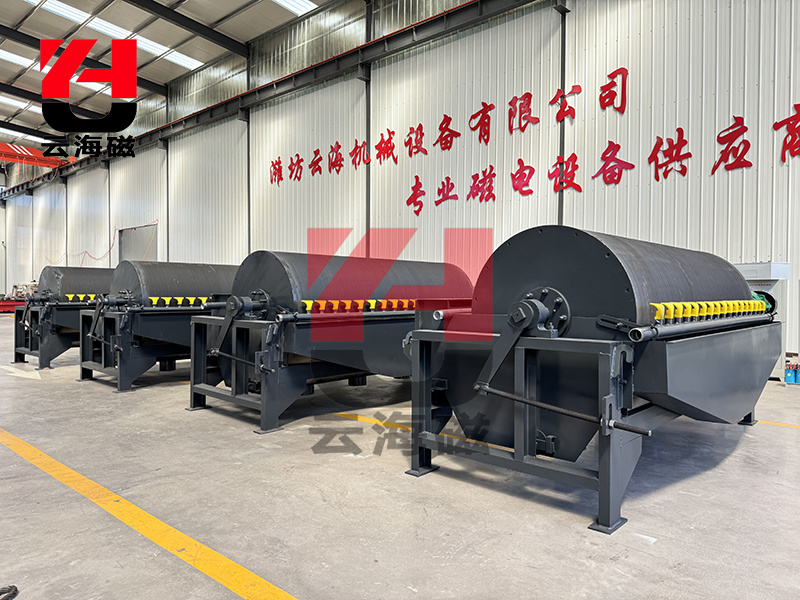

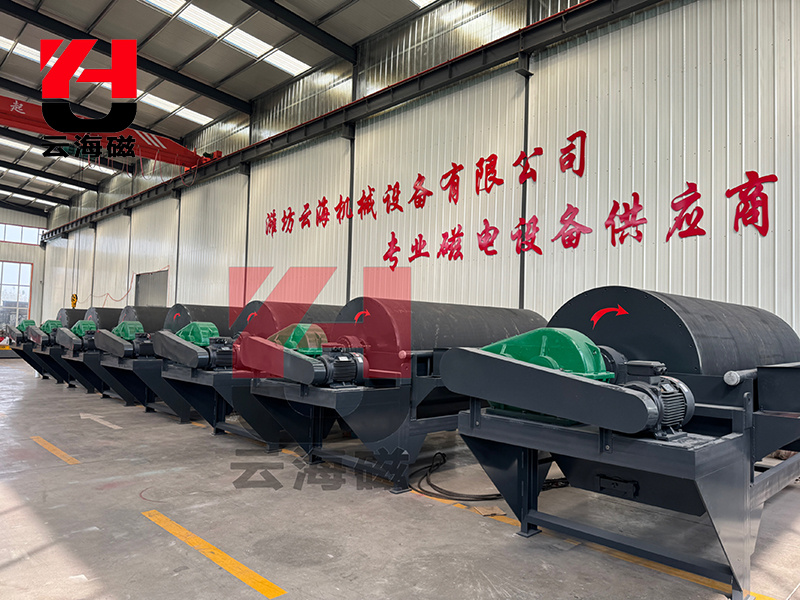

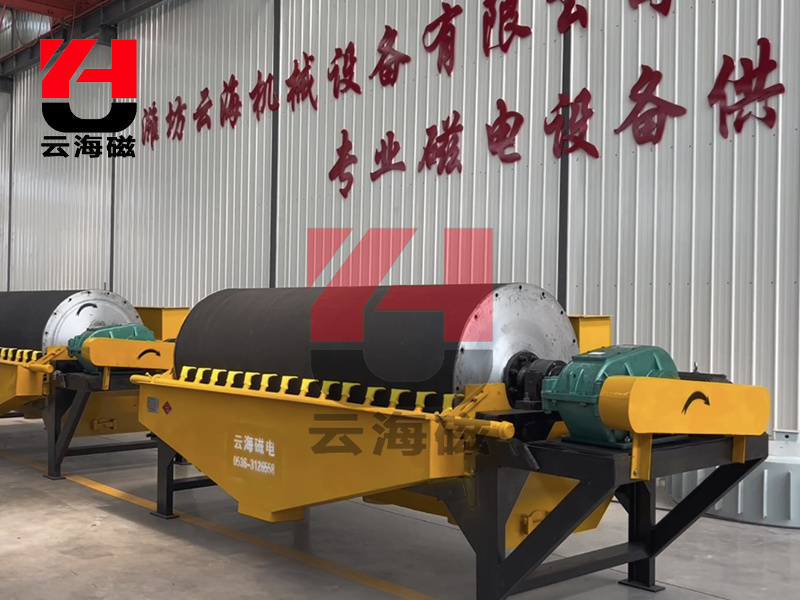

CTB (N, S) series permanent magnet wet magnetic separator

Product Introduction

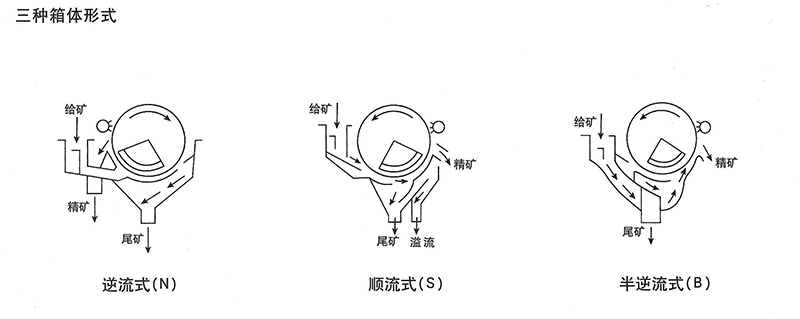

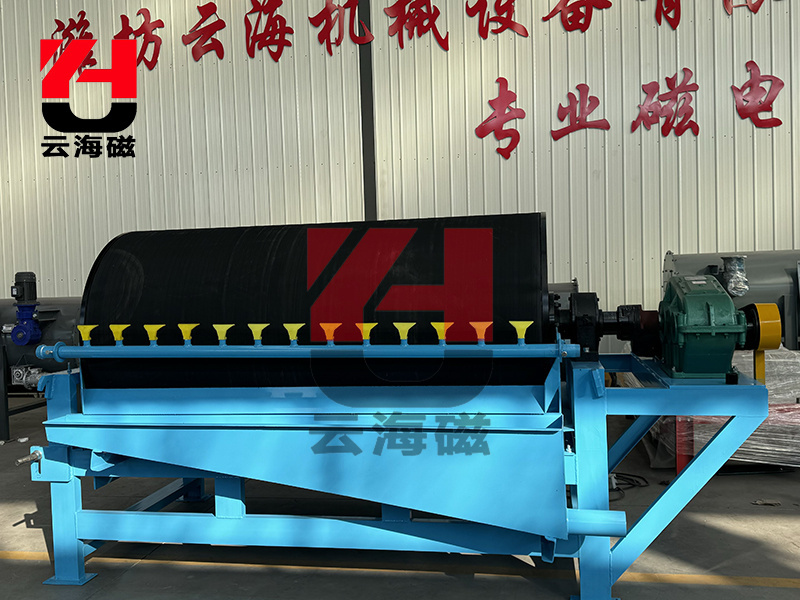

This machine has three types of tanks: semi counter current tank (CTB), counter current tank (CTS), and counter current tank (CTN), which are suitable for different particle sizes and process requirements. The magnetic circuit of the machine is reasonable, and high coercivity and high remanence permanent magnets are strictly selected to ensure that the magnetism does not decrease over a long period of time, safeguarding the long-term interests of users. The overall structure is reliable and durable.

doc01953220250424112409

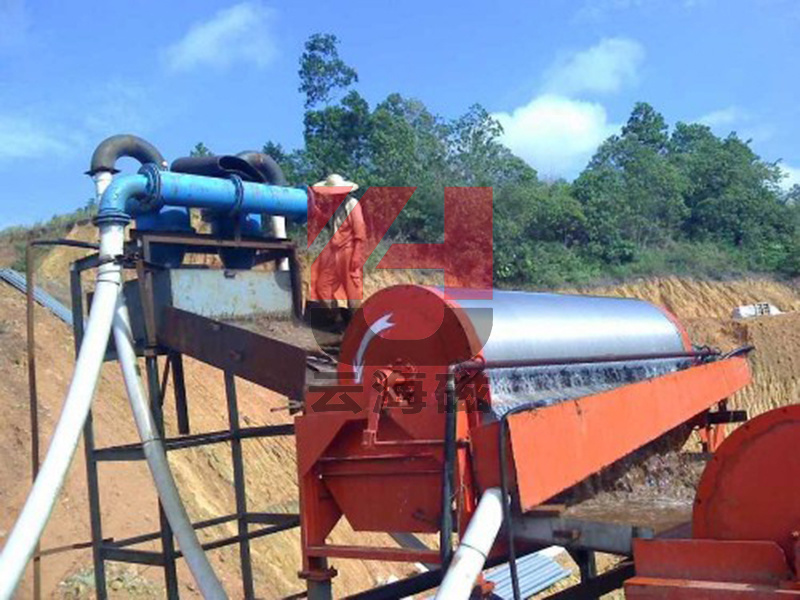

working principle

▲ Adopting rare earth composite magnetic system, advanced technology and reasonable structure. Through special design, the magnetic field intensity distribution in the selected and scanned areas is more reasonable, and the sorting effect is more obvious.

The tank has been specially designed to prevent material blockage and leakage.

▲ Wear resistant aluminum flanges are used at both ends of the cylinder; The surface of the drum is lined with wear-resistant materials, which have good wear resistance and long service life.

▲ Adopting a cycloidal reducer, it has small size, light weight, and low power consumption.

▲ Simple structure, large processing capacity, easy operation, and easy maintenance.

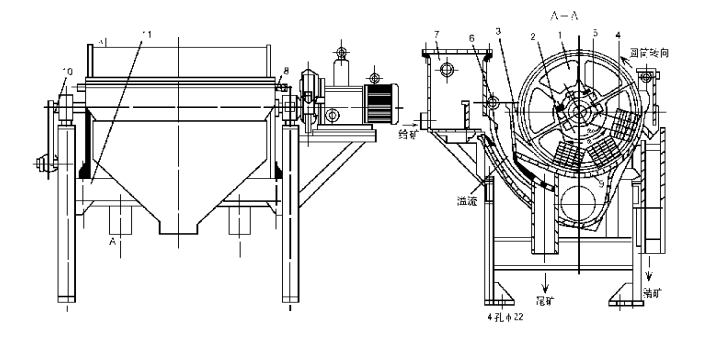

qq截圖20250424104019

Technical Specifications

model	Cylindrical ruler mm	Magnetic induction intensity on the surface of the cylinder			Processing ability		Motor power	Cylinder rotation speed r/min	weight kg
model	Cylindrical ruler mm	average	Scan the selection area	Midfield strong magnetic field	t/h	m3/h	Motor power	Cylinder rotation speed r/min	weight kg
CTB-44	400×400	130	180	250-400	1-2	4-5	1.1	45	350
CTB-46	400×600	130	180	250-400	2-3	5-10	1.1	45	600
CTB-63	400×300	140	180	250-400	3-5	8-15	1.1	40	600
CTB-66	400×600	140	180	250-400	5-10	10-30	1.1	40	750
CTB-69	600×900	180	180	250-400	8-15	20-50	1.1	40	910
CTB-612	600×1200	140	180	250-400	10-20	25-60	2.2	40	1050
CTB-618	600×1800	140	180	250-400	15-30	40-80	2.2	40	1340
CTB-712	750×1200	160	200	300-500	15-30	40-80	3	35	1500
CTB-718	750×1800	160	200	300-500	20-45	60-100	3	35	2100
CTB-918	900×1800	170	200	300-600	25-55	70-120	4	28	2900
CTB-924	900×2400	170	200	300-600	35-70	80-130	4	28	3600
CTB-1018	1050×1800	180	220	300-700	40-75	110-160	5.5	22	4000
CTB-1021	1050×2100	180	220	300-700	50-100	140-200	5.5	22	4500
CTB-1024	1050×2400	180	220	300-700	60-120	170-260	5.5	22	5000
CTB-1030	1050×3000	180	220	300-700	70-150	200-320	7.5	22	6300
CTB-121	1200×1800	180	220	300-700	60-110	150-230	5.5	19	4900
CTB-1224	1200×2400	180	220	300-700	70-130	80-300	7.5	19	5900
CTB-1230	1200×3000	180	220	300-700	80-160	250-400	7.5	19	7200
CTB-1530	1500×3000	180	220	300-700	100-180	290-480	11	14	8900
CTB-1540	1500×4000	180	220	300-700	115-220	300-540	11	14	9900
